Product Overview

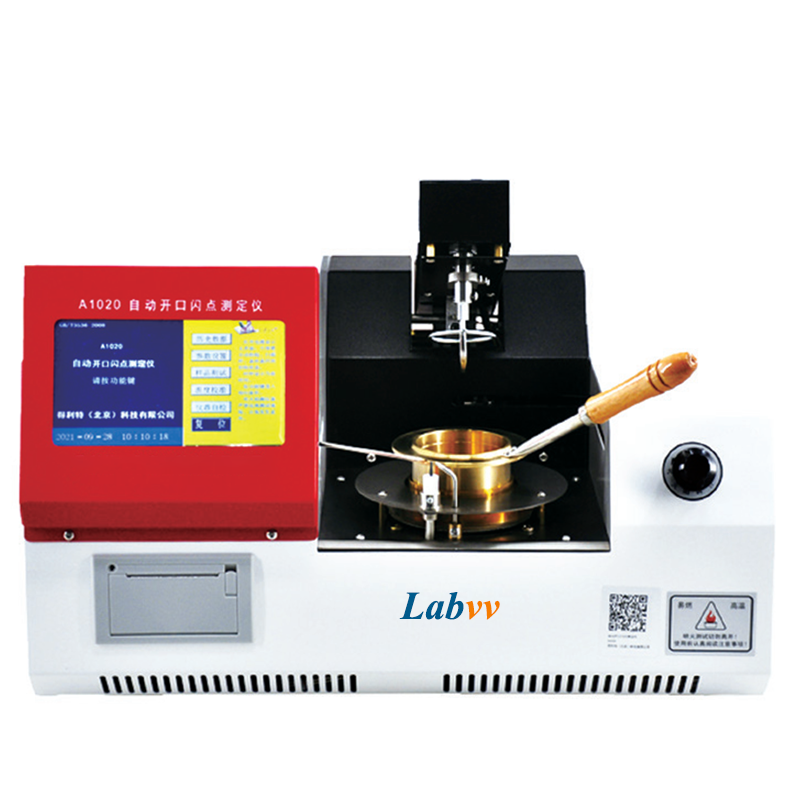

The A1020 Automatic Open Cup Flash Point Tester is a high-precision laboratory instrument designed for the accurate determination of flash point values in petroleum products, lubricants, heavy oils, and other flammable liquids. Built to meet the stringent requirements of modern petroleum testing laboratories, this instrument ensures reliable performance, repeatable results, and full compliance with international standards.
Engineered with a modular structure and equipped with an advanced microprocessor control system, the A1020 delivers fully automated operation from heating to ignition and result display. It significantly reduces manual intervention, improves testing efficiency, and enhances operational safety when handling flammable substances.
The instrument is fully compliant with ASTM D92 and GB/T 3536 standards, making it a trusted solution for laboratories, refineries, research institutes, and quality control departments that require standardized and globally recognized flash point testing methods.
Product Features
The A1020 Automatic Open Cup Flash Point Tester integrates advanced technology with user-friendly design to deliver high performance and operational stability.
✔ Intelligent Control System
Equipped with a large color LCD touchscreen, the system provides a clear and intuitive interface. Users can easily configure test parameters, monitor real-time temperature changes, and view results automatically.
✔ High-Precision Temperature Control
The advanced heating system ensures a controlled and stable temperature rise, minimizing fluctuations and improving test accuracy. This guarantees consistent flash point detection under strict laboratory conditions.
✔ Dual Ignition Methods
Supports both electric ignition and gas flame ignition, allowing laboratories to choose the most suitable method based on testing requirements and regional standards.
✔ Fully Automatic Operation
The entire testing process is automated, including sample heating, stirring, ignition triggering, flash detection, and result calculation. This reduces operator workload and eliminates human error.
✔ Data Storage & Connectivity
The built-in memory system stores multiple test results, and the RS-232 interface enables seamless data transfer to computers or laboratory information systems for documentation and analysis.
✔ Enhanced Safety Protection
Designed with multiple safety mechanisms, including overheating protection and forced air cooling, ensuring safe operation when handling volatile and flammable samples.
✔ Standard Compliance Assurance
Complies with ASTM D92 and GB/T 3536, ensuring results are internationally accepted and suitable for quality certification and regulatory reporting.
Technical Specifications
| Parameter | Specification |
|---|---|
| Power Supply | AC 220V ±10%, 50Hz |
| Temperature Range | Room Temperature ~ 400°C |
| Resolution | 0.1°C |
| Repeatability | ≤ 4°C |
| Reproducibility | ≤ 8°C |
| Ambient Temperature | 5°C ~ 40°C |
| Relative Humidity | ≤ 85% |
| Power Consumption | ≤ 500W |
| Ignition Method | Electric Ignition / Gas Flame |
| Display | Color LCD Touch Screen |
| Data Interface | RS-232 |
| Cooling System | Forced Air Cooling |
| Dimensions | 520 × 360 × 310 mm |
| Weight | 16 kg |
| Standards | ASTM D92 / GB/T 3536 |
Working Principle
The A1020 Automatic Open Cup Flash Point Tester operates based on the standardized open cup flash point testing method defined in ASTM D92.
A measured sample is placed into the open test cup and gradually heated at a controlled rate. As the temperature increases, volatile vapors are released from the sample surface. At predefined temperature intervals, an ignition source (electric or gas flame) is introduced across the vapor surface.
The instrument automatically detects the moment when a flash occurs—defined as the lowest temperature at which vapors ignite momentarily without sustaining combustion. The built-in sensor system accurately captures this flash point temperature and displays the final result on the LCD screen.
This fully automated process ensures high repeatability, minimizes operator influence, and guarantees compliance with standardized laboratory testing procedures.
Applications
The A1020 Automatic Open Cup Flash Point Tester is widely used across multiple industries where flammable liquid safety and quality control are critical.
Petroleum Laboratories
Used for testing flash points of crude oil, lubricants, fuel oils, and heavy petroleum products.
Power Generation Industry
Essential for transformer oil safety analysis to prevent fire hazards and ensure operational safety.
Aviation Industry
Applied in aviation fuel quality testing to ensure compliance with aviation safety regulations.
Chemical Industry
Used for testing flammable solvents, chemical intermediates, and combustible liquids.
Research Institutes & Universities
Ideal for teaching, research experiments, and material property analysis in chemical engineering and petroleum studies.
Buyer Benefits
Choosing the A1020 Automatic Open Cup Flash Point Tester brings significant advantages to laboratories and industrial users:
✔ Improved Testing Efficiency
Fully automated operation reduces manual intervention and significantly increases daily testing capacity.
✔ International Standard Compliance
Ensures test results meet ASTM and GB/T requirements, making data globally accepted.
✔ Reduced Human Error
Automation minimizes subjective judgment and improves accuracy and consistency.
✔ Enhanced Laboratory Safety
Built-in protection systems reduce risks associated with flammable substances and high-temperature operations.
✔ Reliable & Repeatable Results
High-precision temperature control ensures stable and reproducible test outcomes.
✔ Cost-Effective Operation
Low maintenance design and durable components reduce long-term operational costs.
OEM & Global Support
LabVV provides comprehensive OEM and global partnership services to support distributors and laboratory solution providers worldwide:
- Custom logo and branding services
- Multi-language interface customization
- Voltage and plug adaptation for different regions
- Technical manuals and documentation support
- Remote installation and training assistance
- Spare parts supply and maintenance support
- Long-term distributor cooperation programs
Why Choose LabVV
With over 10 years of industry experience, LabVV has become a trusted supplier of petroleum testing instruments and laboratory equipment worldwide.
✔ Proven Industry Experience
Serving laboratories, refineries, and distributors across global markets.
✔ Stable Manufacturing Quality
Each instrument is manufactured under strict quality control systems to ensure reliability.
✔ Comprehensive Product Range
Covering flash point testers, viscosity analyzers, distillation equipment, sulfur analyzers, and more.
✔ Fast Delivery & Flexible Ordering
Support for both small batch and bulk orders with efficient logistics.
✔ Global Market Support
Strong presence in the Middle East, Africa, Southeast Asia, and other emerging markets.
Get a Quote Today
Looking for a reliable ASTM D92 Automatic Open Cup Flash Point Tester supplier or a long-term distributor partner?
LabVV provides competitive pricing, professional technical support, and fast global delivery.
📧 Email: sophie@labvv.com
📱 WhatsApp: +86 13560386440
🌐 Website: www.labvv.com
✔ Response within 24 hours
✔ OEM & distributor cooperation available
✔ Global shipping support
LabVV – Your Trusted Partner for Petroleum Testing Laboratory Solutions
