ASTM D86 / ASTM D850 Compliant | High-Precision Laboratory Distillation Analyzer
Product Overview

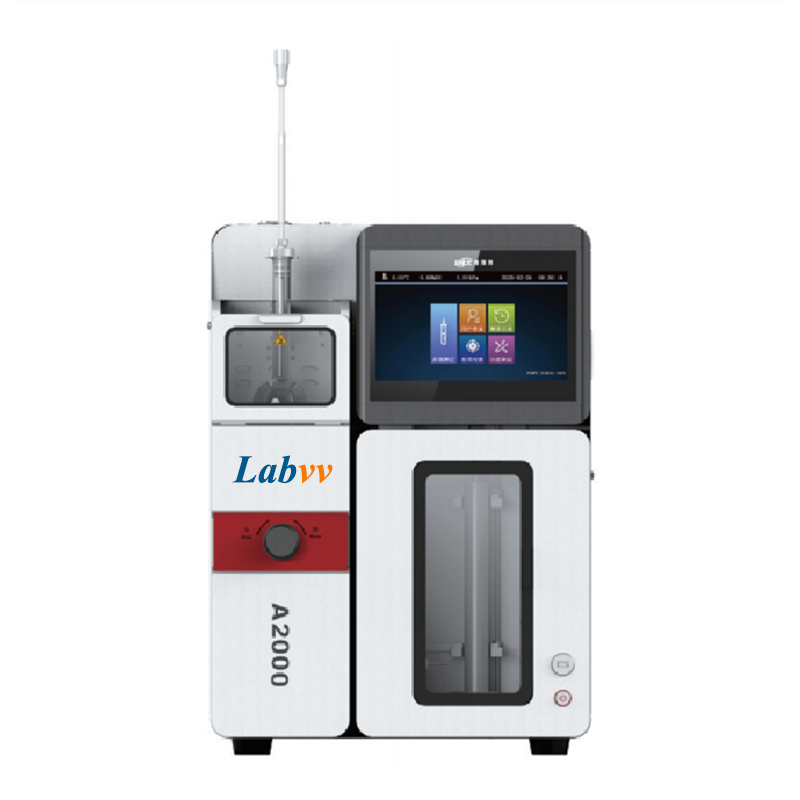

The A2000 Automatic Petroleum Distillation Tester is a high-performance laboratory instrument designed for the precise determination of distillation characteristics of petroleum products under atmospheric pressure.
Built with integrated mechanical structure, optical detection system, electronic control technology, and intelligent software algorithms, the instrument can automatically complete the entire distillation testing process with minimal operator intervention.
It is specifically developed for analyzing the boiling range distribution of petroleum fractions such as gasoline, diesel, kerosene, jet fuel, fuel oil, and other light or heavy hydrocarbon mixtures.
The A2000 ensures high accuracy, excellent repeatability, and full compliance with international standards including ASTM D86 and GB/T 6536, making it an essential solution for petroleum refineries, fuel laboratories, chemical industries, aviation fuel testing centers, maritime inspection agencies, and research institutions.
Product Features
1. Fully Automated Distillation Process
The system automatically controls heating, condensation, volume measurement, and data recording. The operator only needs to load the sample and start the program, significantly reducing human error and labor intensity.
2. Intelligent Heating Control System
- Advanced infrared radiation heating technology
- Automatic adjustment of heating rate to meet ASTM/GB standards
- Ensures stable and reproducible distillation curve
- Prevents overheating and sample degradation
3. Flexible Data Recording Modes
The system supports multiple customizable recording options:
- Temperature vs recovered volume
- Volume vs temperature
- Automatic recording of standard distillation points
- User-defined data collection points
4. Multiple Test End Modes
The instrument provides five intelligent termination modes:
- End Point Mode: Stops when final boiling point is detected
- Dry Point Mode: Stops when dry point is reached
- Temperature Mode: Stops at preset temperature
- Volume Mode: Stops at preset recovered volume
- Manual Mode: Operator stops test with automatic data saving and report printing
5. Advanced Control System
- Embedded microcomputer control system
- Built-in real-time clock (no manual date input required)
- Automatic test report generation and printing
- Optional PC software monitoring via wired or wireless connection
6. Stable Structure & Easy Operation
- Large full-color display interface
- One-key operation design
- Compact and durable structure
- Suitable for continuous laboratory use
- Low maintenance requirement
Technical Parameters
| Item | Specification |
|---|---|
| Product Name | Petroleum Distillation Tester |
| Model | A2000 |
| Standard Compliance | ASTM D86 / GB/T 6536 |
| Temperature Range | Room temperature ~ 400°C |
| Temperature Resolution | 0.1°C |
| Temperature Sensor | PT100 high-precision sensor |
| Heating Method | Infrared radiation heating |
| Heating Power | 2500 W |
| Distillation Rate | 4–5 mL/min |
| Volume Detection Range | 0–100 mL |
| Volume Resolution | 0.1 mL |
| Cooling Method | Compressor refrigeration system |
| Water Bath Temperature Range | 0–60°C |
| Ambient Temperature Range | 5–40°C |
| Display | Full-color industrial LCD screen |
| Printer | 40-column dot matrix printer |
| Control System | Embedded intelligent microprocessor |
| Data Communication | Optional USB / LAN / Wireless |
| Dimensions | 550 × 450 × 660 mm |
| Weight | 65 kg |
Working Principle
The Petroleum Distillation Tester operates by heating a measured petroleum sample under controlled atmospheric pressure. As the temperature increases, volatile components begin to evaporate and pass through a condensation system.
The vapor is condensed back into liquid form and collected in a graduated receiver. During the entire process, the system continuously monitors temperature and recovered volume using high-precision sensors.
The instrument automatically records:
- Initial boiling point (IBP)
- Intermediate distillation points
- Final boiling point (FBP)
- Volume-temperature relationship
All data is processed in real time and converted into standardized distillation curves according to ASTM D86 and GB/T 6536 testing methods.
Applications
The A2000 Petroleum Distillation Tester is widely used in:
- Petroleum refining laboratories
- Fuel quality inspection institutions
- Aviation fuel testing laboratories
- Diesel and gasoline production plants
- Chemical and petrochemical industries
- Marine fuel inspection departments
- Railway fuel quality control systems
- Power generation and energy companies
- Research institutes and testing laboratories
It is an essential analytical instrument for quality control, product certification, R&D development, and regulatory compliance testing.
Buyer Benefits
- Fully automated testing reduces operator workload
- High accuracy improves laboratory reliability
- Ensures compliance with international ASTM and GB standards
- Reduces testing time and increases laboratory efficiency
- Minimizes human error in critical fuel testing processes
- Stable and durable for long-term industrial use
- Easy integration into modern laboratory workflows
- Improves quality control consistency in fuel production
OEM & Customization Support
LabVV provides comprehensive OEM and customization services for global partners:
- Private label and OEM branding support
- Customized software interface (multi-language available)
- Adjustable voltage and plug standards for different countries
- Optional communication interfaces (USB, LAN, wireless modules)
- Customized report formats and data output settings
- Distributor and agent cooperation programs worldwide
- Technical training and remote support services
- Long-term spare parts and maintenance support
We welcome global distributors, laboratory solution providers, and industry partners to cooperate with us.
Why Choose LabVV
- Professional manufacturer of petroleum testing instruments
- Strong engineering and R&D capabilities
- Strict quality control system and international certification compliance
- Extensive export experience in Middle East, Africa, and global markets
- Stable supply chain and factory-direct pricing advantage
- Fast technical response and professional after-sales service
- One-stop laboratory equipment solution provider
LabVV is committed to delivering reliable, precise, and efficient laboratory testing solutions for global industries.
Contact Us
For quotation, technical support, product catalog, or distributor cooperation, please contact us:
🌐 Website: https://labvv.com
📧 Email: sophie@labvv.com
📱 WhatsApp: +86 13560386440
We welcome global inquiries for the Petroleum Distillation Tester A2000 and laboratory equipment cooperation opportunities.
