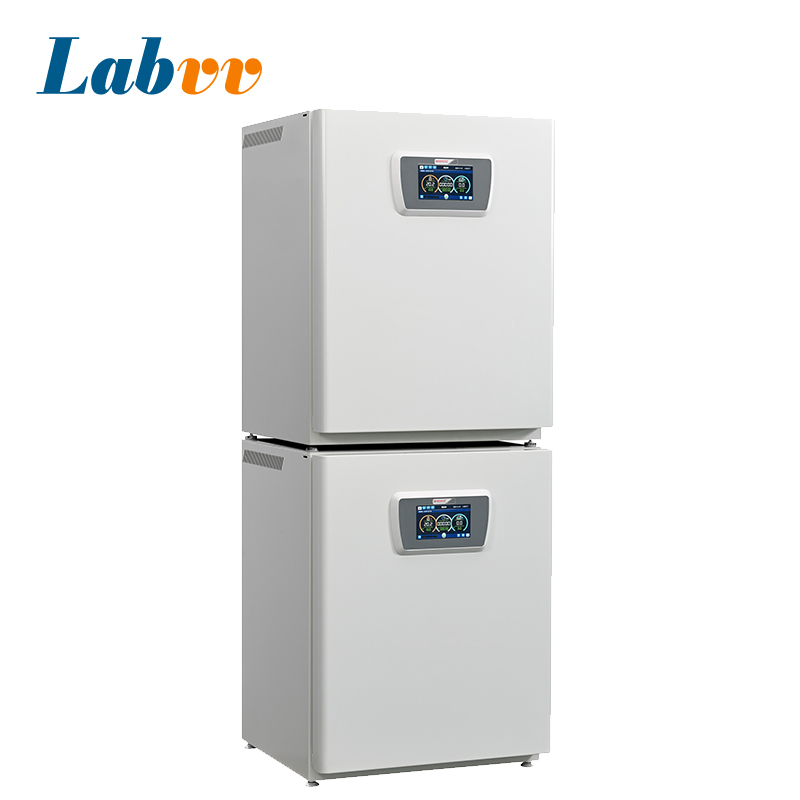

High-Performance CO₂ Incubator for Cell Culture (175L)
A CO₂ incubator for cell culture is essential for maintaining a stable and contamination-free environment for mammalian cell growth. Designed for research, pharmaceutical, and biotech laboratories, this 175L CO₂ incubator combines precise environmental control, advanced sterilization technology, and GMP-compliant data management to ensure reliable and reproducible experimental results.
Precise Environmental Control for Reliable Cell Growth
This CO₂ incubator for cell culture is engineered to closely simulate physiological conditions required for sensitive cell and tissue culture applications.
- Temperature range: RT +3 °C to 60 °C
- Temperature control accuracy: ±0.1 °C
- Temperature uniformity: ≤ ±0.3 °C at 37 °C
- CO₂ control range: 0–20%
- CO₂ control accuracy: ±0.1%
- CO₂ uniformity: ≤ ±0.5% at 5% CO₂
The forced-air convection system ensures uniform distribution of temperature, humidity, and CO₂ concentration throughout the chamber, eliminating localized fluctuations that could affect cell viability.
Advanced CO₂ Sensing Technology
To guarantee long-term stability, the incubator is equipped with an imported high-precision infrared (IR) CO₂ sensor that is resistant to high temperature and humidity.
Key benefits include:
- Fast response time
- Excellent long-term stability
- Extended service life
- Accurate CO₂ monitoring during continuous operation
This makes the incubator particularly suitable for long-term mammalian cell culture and critical research applications.
90 °C High-Temperature Humid Sterilization
Contamination control is critical in cell culture environments. This CO₂ incubator features 90 °C high-temperature humid heat sterilization, effectively eliminating:
- Bacteria
- Mold and fungi
- Fungal spores
- Mycoplasma
Additionally, a large HEPA air filter inside the chamber achieves ISO Class 5 (Class 100) cleanliness, providing a clean and protected culture environment.
Optimized Humidity and Condensation Control
- Bottom water tray humidification for stable high humidity
- Fast humidity recovery after door opening
- Heated outer glass door to prevent condensation and ensure clear observation
These features help reduce evaporation of culture media and maintain stable osmotic conditions during extended experiments.
User-Friendly Operation and Intelligent Control
The incubator is equipped with a 7-inch full-color touchscreen, supporting Chinese and English language switching and glove-friendly operation, improving usability in laboratory environments.
Key intelligent functions include:
- Real-time parameter curve display
- Historical data storage and export via USB
- Adjustable axis ranges for data visualization
- Operation log tracking
GMP-Compliant Data Traceability
To meet pharmaceutical and regulated laboratory requirements, the incubator supports three-level authority management:
- Administrator
- Maintenance personnel
- Operator
All operations are logged, and data are fully traceable, making this CO₂ incubator for cell culture well suited for GMP-regulated laboratories.
Durable Chamber Design
- Inner chamber material: 304 mirror-finish stainless steel
- Smooth, corrosion-resistant surface
- Easy to clean and resistant to contamination
The chamber supports up to 7 adjustable shelves (standard configuration: 3 shelves), offering flexible space utilization for different culture vessels.
Technical Specifications Overview
- Volume: 175 L
- Heating method: Six-side air-jacket heating
- Sterilization: 90 °C high-temperature humid heat
- Convection: Forced air circulation
- Power: 800 W
- Power supply: 220 V ±10%, 50/60 Hz
- External dimensions: 620 × 800 × 810 mm
- Internal dimensions: 492 × 515 × 630 mm
- Weight: Approx. 72 kg
Conclusion
This CO₂ incubator for cell culture delivers precise temperature, CO₂, and humidity control, advanced sterilization, and GMP-compliant data management in a robust 175L design. It is an ideal solution for laboratories requiring high reliability, contamination control, and regulatory compliance in cell culture applications.
