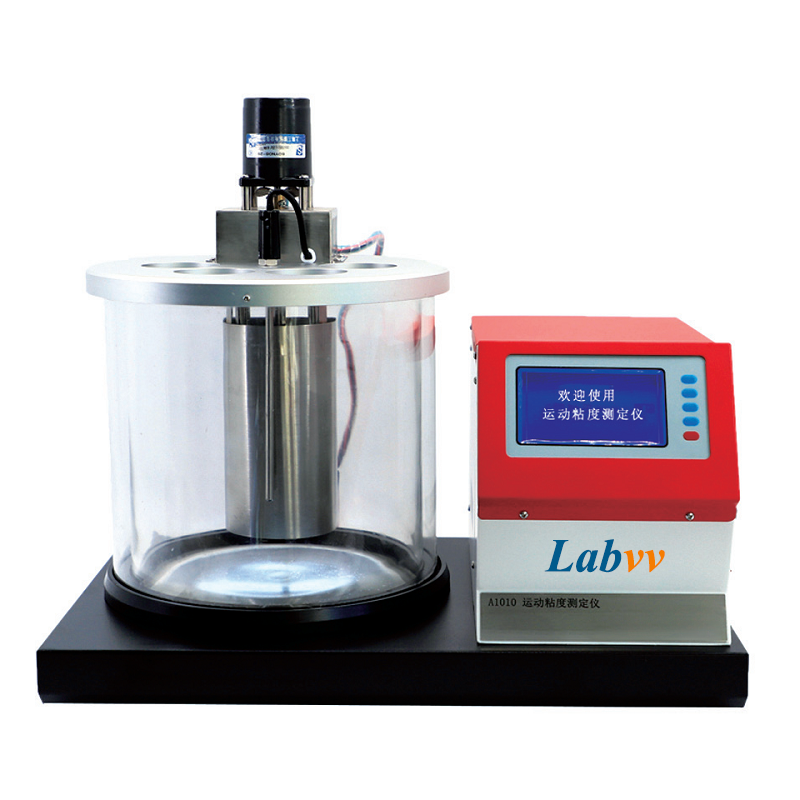

Product Overview
The A1010 Kinematic Viscometer is a high-precision laboratory instrument specially designed for measuring the kinematic viscosity of petroleum products, lubricating oils, transformer oils, hydraulic fluids, diesel, fuel oil, base oils, and other liquid samples.
The instrument fully complies with ASTM D445, GB/T 265, GB 11137, GB/T 1995, and GB/T 1660, making it an ideal testing solution for petroleum laboratories, lubricant manufacturers, oil analysis centers, universities, research institutes, and industrial quality control departments.
Kinematic viscosity is one of the most critical physical properties for evaluating oil grade, lubricant performance, product consistency, and machinery protection performance. Accurate viscosity testing helps users select suitable lubricants, reduce friction loss, improve mechanical efficiency, and extend the service life of industrial equipment.
The A1010 adopts an advanced PID temperature control system, intelligent timing module, and automatic viscosity calculation function to ensure highly stable, accurate, and repeatable test results. Its 4-capillary tube design allows simultaneous testing of multiple samples, significantly improving laboratory throughput and testing efficiency.
Product Features
- Fully compliant with ASTM D445 and GB/T 265
- Wide viscosity measurement range: 0–10,000 mm²/s
- Advanced PID temperature control
- High temperature accuracy: ±0.1°C
- 4 capillary tube positions for simultaneous multi-sample testing
- Automatic sample timing and viscosity result calculation
- LCD display with easy operation interface
- Built-in illumination system for clear sample observation
- Durable stainless steel bath components
- Excellent bath temperature uniformity
- Stable SSR heating control system
- Compatible with multiple capillary tube types
- Reliable for petroleum and lubricant routine testing
The solid-state relay heating system ensures long-term stability with no spark, no noise, and reduced maintenance requirements, making it highly suitable for continuous laboratory use.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | A1010 |
| Test Standards | ASTM D445, GB/T 265, GB 11137, GB/T 1995, GB/T 1660 |
| Measurement Range | 0–10,000 mm²/s |
| Temperature Range | Ambient to 120°C |
| Temperature Accuracy | ±0.1°C |
| Ambient Temperature | 5°C–40°C |
| Relative Humidity | ≤85% |
| Capillary Tube Quantity | 4 |
| Sample Volume | 10mL |
| Heater Power | 1000W |
| Power Supply | AC 220V ±10%, 50Hz |
| Instrument Weight | 18.4kg |
| Dimensions | 315 × 370 × 500mm |
Applications
The A1010 Kinematic Viscometer is widely used in:
- Petroleum testing laboratories
- Lubricating oil production plants
- Transformer oil analysis
- Hydraulic fluid testing
- Diesel and fuel oil quality control
- Industrial machinery maintenance
- University teaching laboratories
- Research institutes
- Third-party testing laboratories
- Oil distributor inspection centers
It is especially suitable for viscosity testing of:
- lubricating oils
- hydraulic oils
- diesel
- transformer oils
- industrial gear oils
- turbine oils
- fuel oils
- petroleum liquid samples
Working Principle
The A1010 Kinematic Viscometer determines the kinematic viscosity of petroleum products and lubricating oils by measuring the time required for a liquid sample to flow through a calibrated capillary viscometer tube under precisely controlled temperature conditions.
The final viscosity value is automatically calculated by multiplying the capillary constant by the average flow time, ensuring high accuracy, excellent repeatability, and compliance with ASTM D445 testing requirements.
This proven testing method is widely used in petroleum laboratories, lubricant manufacturers, transformer oil testing, and international oil quality control systems.
Optional Capillary Tubes
The A1010 is supplied with a standard Pinkevitch viscometer tube and can also be configured with optional:
- Ubbelohde tubes
- Fenske tubes
- Reverse-flow tubes
This flexible design allows laboratories to adapt the system to different viscosity ranges and testing standards.
Buyer Benefits
Higher Testing Accuracy
The advanced PID system ensures precise temperature stability, which is essential for viscosity testing repeatability.
Improved Laboratory Efficiency
The 4-position capillary design allows multiple samples to be tested simultaneously, reducing testing time and increasing productivity.
Reduced Manual Errors
Automatic timing and viscosity calculation improve result consistency and reduce operator workload.
Reliable Global Compliance
ASTM D445 compliance makes this instrument suitable for export-oriented laboratories and global distributors.
Long Service Life
The stainless steel bath structure and SSR heating technology reduce maintenance costs and improve long-term durability.
OEM & Global Distributor Support
Labvv supports:
- OEM logo branding
- custom voltage
- multilingual manuals
- customized packaging
- spare parts support
- global technical service
- distributor cooperation
This makes the A1010 an excellent choice for laboratory equipment distributors, petroleum laboratories, and international resellers.
