✦ Key Features

🌡️

Precision PID Temperature Control

PID controller with timer and thermostatic bath ensures stable, accurate temperature regulation across the full RT~120°C range.

📊

4 Capillary Positions – Batch Sequential

Load up to 4 capillary tubes at once for batch testing. The instrument tests them sequentially with automatic timing and cleaning, reducing handling time and ensuring consistent bath temperature across all samples.

⚡

Automatic Timing & Calculation

Automatically times sample flow and computes kinematic viscosity = capillary constant × average time, reducing operator error.

📊 Why A1010 Stands Out

🌡️ Temperature Control Accuracy

LabVV A1010	±0.1°C
Industry Standard	±0.2°C
Basic Models	±0.5°C

✅ ±0.1°C accuracy — 2x more precise than the industry standard requirement for ASTM D445

⚡ 4 Capillary Positions – Batch Efficiency

🧪

Tube 1

Position 1

🧪

Tube 2

Position 2

🧪

Tube 3

Position 3

🧪

Tube 4

Position 4

⏱ Load 4 Tubes at Once – Sequential Testing | Consistent Temperature Field, Less Handling

📈 Measurement Range: 0 – 10,000 mm²/s

0
10,000 mm²/s

🔌 Transformer Oil (9–35 mm²/s)

🛢️ Lubricating Oil (32–680 mm²/s)

⛽ Fuel Oil (180–700 mm²/s)

⚙️ Gear Oil (680–3200 mm²/s)

🏭 Heavy Fuel Oil (≤ 7000 mm²/s)

✅ Covers all major petroleum product viscosity ranges — from thin transformer oils to heavy fuel oils

🎯 Applications

Power Utilities — transformer oil and insulating oil viscosity testing
Petroleum & Petrochemical Laboratories — base oils, lubricants, and fuel oils
Chemical Industry — plasticizers and specialty process fluid testing
Environmental Protection Agencies — petroleum product quality monitoring
Universities & Research Institutes — viscosity index and fluid dynamics research
Third-Party Testing Labs — standards-based product certification and QC
Marine & Aviation Fuel Testing — fuel oil viscosity analysis for compliance
Lubricant Blending Plants — incoming raw material and finished product QC

Product Overview

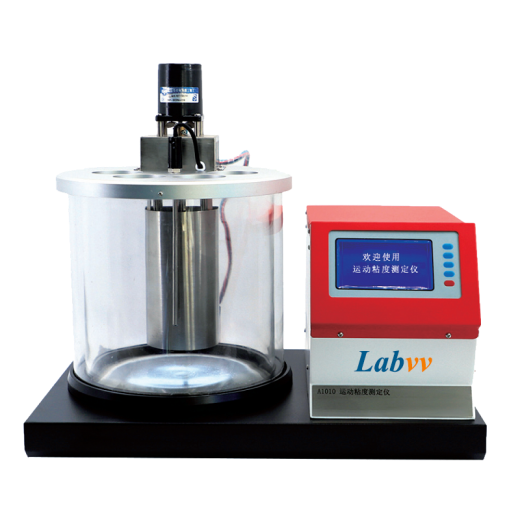

The A1010 Kinematic Viscometer is a precision laboratory instrument designed to determine the kinematic viscosity of liquid petroleum products. Kinematic viscosity is one of the most important physical properties used to classify and evaluate petroleum products. Selecting lubricants with the proper viscosity helps ensure the reliable and efficient operation of mechanical equipment.

Compliant with ASTM D445, GB/T 265, GB 11137 (Reverse-Flow Viscometer), GB/T 1995 (viscosity index), and GB/T 1660 (plasticizers), the A1010 is widely used across power, petroleum, chemical, environmental protection, and scientific research sectors for testing the kinematic properties of petroleum products.

⭐ Product Features

PID Temperature Control System — PID controller, timer, and thermostatic water bath work together for stable, precise temperature regulation.
High-Uniformity Thermostatic Bath — Compact double-layer cylindrical bath design ensures even temperature distribution and excellent control performance.
Smart LCD Interface — Menu-driven LCD display for easy input of preset temperature, date, time, and other parameters.
Solid-State Relay (SSR) Control — Contact-free, spark-free, low-noise, vibration-resistant operation with long service life.
Durable Stainless-Steel Build — Heater and flow-guide cylinder are made of corrosion-resistant stainless steel.
Built-In Illumination System — Clear sample observation window with energy-efficient, long-life LED lighting.
Automatic Timing & Calculation — Automatically times sample flow and calculates capillary constant × average time for accurate final viscosity results.
4 Capillary Positions – Batch Sequential Loading — Supplied with Pinkevitch viscometer tubes. Ubbelohde, Fenske, and Reverse-Flow viscometer tubes available as options.

📋 Technical Specifications

Parameter	Specification
Model	A1010
Applicable Standards	ASTM D445, GB/T 265, GB 11137, GB/T 1995, GB/T 1660
Test Method	Capillary Method
Measurement Range	0 – 10,000 mm²/s
Temperature Range	Room Temperature ~ 120°C
Temperature Accuracy	±0.1°C
Capillary Tube Positions	4 Tubes
Sample Volume	~10 ml per tube
Display	LCD, Menu-Driven Interface
Heating Power	1,000 W
Power Supply	AC 220V ±10%, 50Hz
Ambient Temperature	5°C ~ 40°C
Ambient Humidity	≤85% RH
Instrument Dimensions	545 × 370 × 500 mm
Instrument Weight	18.4 kg

📦 What’s Included

A1010 Kinematic Viscometer Main Unit
Pinkevitch Viscometer Tubes (set)
Power Cable (220V)
User Manual
Quality Certificate
Warranty Card

Optional accessories: Ubbelohde, Fenske, or Reverse-Flow (Cross-Arm) Viscometer Tubes available upon request.

✅ Customer Benefits

✅ Higher Testing Throughput — Four capillary tube positions allow multiple samples to be tested in parallel, increasing daily lab capacity.
✅ Reliable, Repeatable Results — ±0.1°C thermostatic accuracy and uniform bath temperature ensure consistent, standards-compliant data.
✅ Simplified Operation — Menu-driven LCD interface with automatic timing and calculation reduces operator workload and error.
✅ Long Service Life — Corrosion-resistant stainless steel components and spark-free SSR control ensure durable, reliable performance.
✅ Full Standards Compliance — Meets ASTM D445, GB/T 265, and related international standards for global laboratory acceptance.

📄 Downloads

Product Specifications & Datasheet

Download the full technical datasheet with complete specifications, dimensions, and ordering information.

📥 Download Datasheet (PDF)

Datasheet PDF to be uploaded. Contact us for immediate access.

🏭 Why Choose LabVV

🏭 Professional Manufacturer 21+ years of R&D and manufacturing experience in petroleum testing instruments	✅ Strict Quality Control Branded core components, strict incoming/outgoing inspection procedures
🌍 Global Supply Capability Export-ready packaging and documentation for worldwide delivery	📋 ASTM/ISO/GB Compliant All instruments meet international testing standards
🔧 Customer-Focused Service Professional English-speaking sales & technical team, remote support available	📦 OEM & Customization Custom logo, voltage, plug, packaging, and private label options available

🌐 OEM & Global Support

LabVV provides professional OEM, ODM, and private label support for global distributors, petroleum lab solution providers, and laboratory equipment trading companies.
