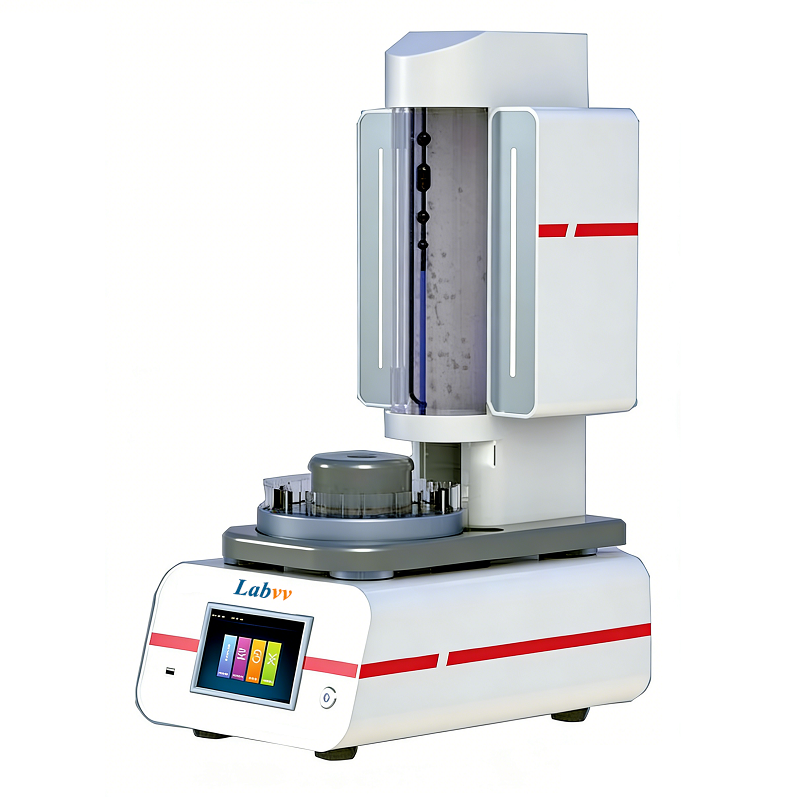

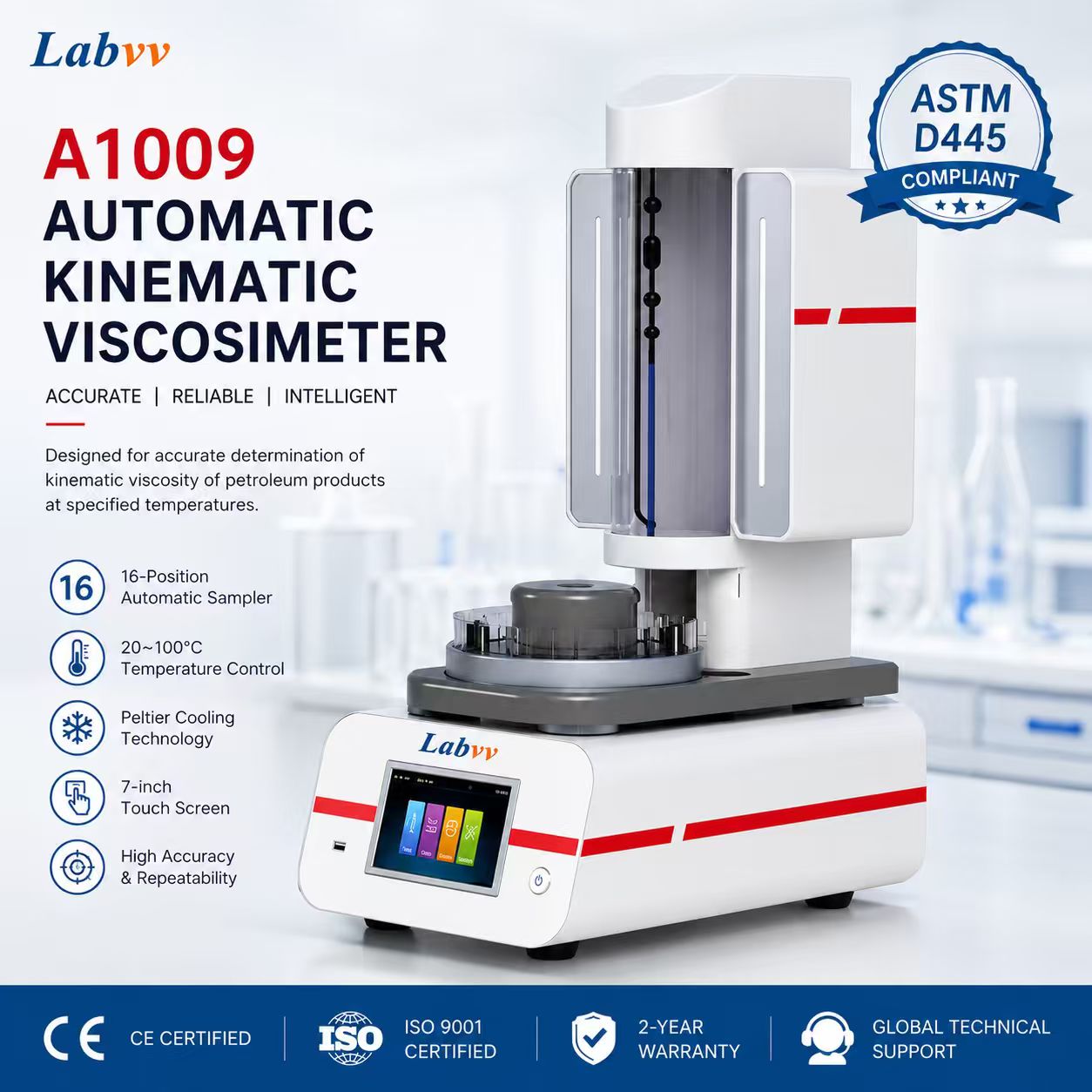

A1009 Automatic Kinematic Viscometer (Straight Tube Type)
The A1009 Automatic Kinematic Viscometer is a high-precision laboratory instrument designed for the fully automatic determination of kinematic viscosity of petroleum products, lubricating oils, diesel, transformer oils, and transparent liquids.
Built in accordance with GB/T 265, ASTM D445, and ASTM D446, the system adopts modern microelectronic control technology with PLC intelligent control as the core. It features a 10-inch touchscreen HMI, high-sensitivity photoelectric detection, automatic result calculation, and thermal printing, enabling fully automated sample analysis for modern petroleum laboratories.
Key Features
- High-precision temperature sensor with excellent bath stability
- PLC industrial control for reliable automatic operation
- 16-position automatic sample feeding for batch testing
- Automatic sample preheating function
- PC and LIMS data connectivity supported
- Automatic liquid replenishment and over-temperature protection
- Peltier semiconductor cooling for rapid temperature stabilization
- 10-inch touchscreen with easy one-touch testing
Testing Principle
The A1009 measures the time required for a fixed volume of petroleum liquid to flow through a calibrated glass capillary viscometer under gravity at a constant temperature. The measured flow time is then multiplied by the viscometer constant to obtain the kinematic viscosity value in mm²/s, fully compliant with ASTM D445 and ASTM D446 standard methods.
Technical Specifications
| Model | A1009 |
| Standard | GB/T 265, ASTM D445, ASTM D446 |
| Power Supply | AC 220V ±10%, 50Hz |
| Temperature Accuracy | ±0.01°C |
| Temperature Range | 20°C–100°C |
| Measuring Range | 0.5–6000 mm²/s |
| Timing Accuracy | 0.01 s |
| Sample Positions | 16-position automatic sampler |
| Cooling Method | Peltier Cooling |
| Display | 10-inch Touchscreen |
| Data Output | Thermal Printer / PC / LIMS |
Applications
- Engine oil viscosity testing
- Diesel and fuel oil analysis
- Transformer oil QC
- Hydraulic oil testing
- Base oil viscosity analysis
- Waste oil laboratory testing
- Refinery and lubricant factory QC labs
- Third-party petroleum testing laboratories
Typical Test Samples
The A1009 is suitable for testing a wide range of petroleum and lubricant samples, including gasoline, diesel, jet fuel, hydraulic oils, base oils, waste oils, transformer oils, gear oils, marine fuels, and industrial lubricants. It is especially suitable for laboratories that require fast batch viscosity testing under ASTM D445 conditions.
Buyer Benefits
- Reduce manual timing errors and improve repeatability
- Increase daily sample throughput with 16-position auto feeding
- Lower laboratory labor cost
- Ideal for distributor demonstration and technical support labs
- Fast batch testing for refinery and lubricant QC
Ideal Users
This instrument is widely selected by petroleum refineries, lubricant manufacturers, fuel inspection agencies, transformer oil laboratories, university research centers, and overseas distributors looking for reliable ASTM D445 compliant viscosity testing solutions.
OEM & Customization
LabVV supports OEM branding, startup logo customization, voltage customization, multilingual user manuals, and distributor packaging services for overseas petroleum laboratory equipment distributors and importers.
After-sales Support
We provide remote installation guidance, online engineer training, spare parts supply, calibration support, and fast technical response for global petroleum laboratories and distributors.
Global Service Support
LabVV provides fast global delivery, remote engineer support, spare parts supply, online training, OEM branding, and long-term distributor cooperation support to ensure smooth installation and operation for international laboratories.
Compliance & Reporting
The A1009 supports standardized viscosity reporting for petroleum laboratories requiring ASTM D445 compliant data output. Test results can be stored, printed, exported to PC systems, or integrated into LIMS workflows, helping laboratories improve data traceability, audit readiness, and long-term quality control management.
Installation & Training
LabVV offers remote installation assistance, video operation training, method setup guidance, and engineer support for overseas customers. This ensures fast commissioning for laboratories, distributors, and refinery QC departments with minimal downtime.
