Product Overview

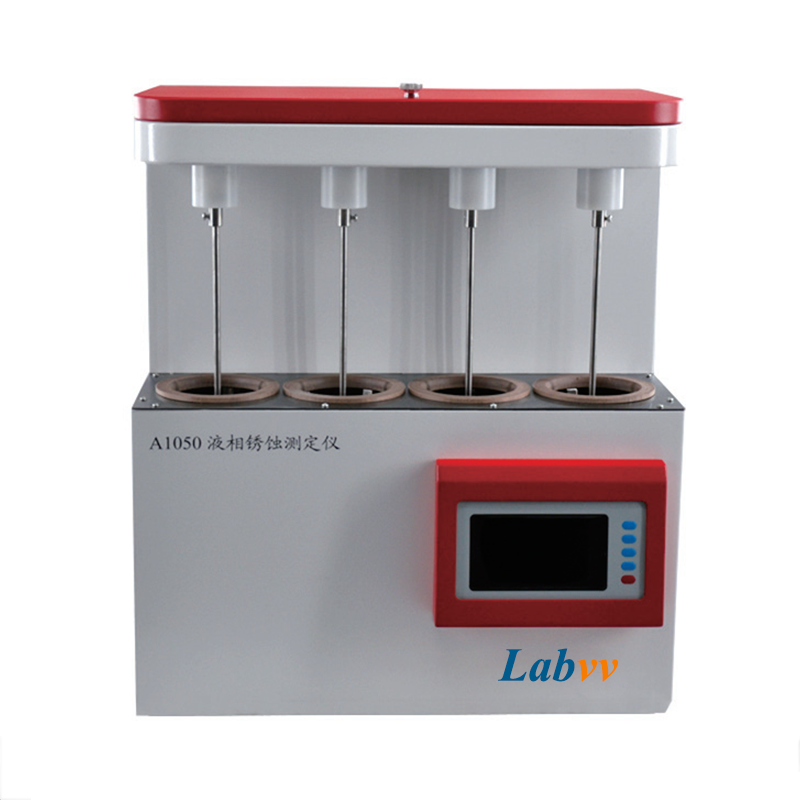

The A1050 Automatic Liquid Phase Rust Tester is a professional petroleum laboratory instrument designed to determine the rust-preventing characteristics of lubricating oils, inhibited mineral oils, turbine oils, hydraulic oils, and other petroleum products when mixed with water under specified laboratory conditions. This equipment is widely used to evaluate the ability of oils to protect ferrous metal surfaces against corrosion and rust formation during service.
The instrument is developed in accordance with internationally recognized testing standards such as ASTM D665, GB/T 11143, and related methods for rust prevention testing of petroleum products. It is an essential solution for oil manufacturers, lubricant laboratories, petrochemical plants, research institutes, universities, and quality inspection agencies.
The A1050 integrates advanced temperature control technology, stable stirring performance, digital timing functions, and a user-friendly operating system. With a 4-position testing design, it allows multiple samples to be tested simultaneously, improving laboratory productivity and testing efficiency.
Built with a durable stainless steel bath chamber and reliable electronic components, the A1050 ensures long service life, accurate test results, and low maintenance costs.
Product Features
1. Complies with ASTM D665 Standard
Designed for determining the rust-preventing characteristics of inhibited mineral oils in the presence of water according to ASTM D665 test methods.
2. Four Test Positions
Supports simultaneous testing of up to four samples, improving laboratory throughput and saving testing time.
3. High Precision Temperature Control
Uses an intelligent temperature control system with excellent stability and accuracy for repeatable results.
4. Stable Stirring System
Equipped with a constant-speed stirring mechanism to maintain uniform test conditions during operation.
5. User-Friendly LCD Display
Large digital display with intuitive menu settings for easy operation and monitoring.
6. Automatic Timer Function
Built-in timer with countdown settings for unattended operation and improved efficiency.
7. Stainless Steel Bath Chamber
Corrosion-resistant bath structure provides durability and easy cleaning.
8. Compact Benchtop Design
Space-saving laboratory structure suitable for modern testing environments.
9. Reliable Performance
High-quality electrical components ensure stable long-term operation.
Technical Parameters
| Item | Specification |
|---|---|
| Model | A1050 |
| Product Name | Automatic Liquid Phase Rust Tester |
| Applicable Standards | ASTM D665, GB/T 11143 |
| Test Positions | 4 Positions |
| Temperature Range | Ambient to 100°C |
| Temperature Accuracy | ±0.5°C |
| Resolution | 0.1°C |
| Stirring Speed | 1000 rpm |
| Timer Range | 0 – 99 Hours |
| Ambient Temperature | 5°C – 40°C |
| Relative Humidity | ≤85% |
| Power Supply | AC220V ±10%, 50Hz |
| Maximum Power Consumption | 2000W |
| Dimensions | 520 × 330 × 570 mm |
| Net Weight | 9.5 kg |
Working Principle
The A1050 Liquid Phase Rust Tester evaluates the anti-rust properties of oils by immersing a polished steel specimen into a mixture of oil and distilled water under controlled temperature and stirring conditions.
During the test, the sample oil and water are placed into the test vessel. A standard steel specimen is suspended in the mixture while the system maintains the specified temperature and agitation speed. After the required testing period, the steel specimen is removed and visually examined for rust or corrosion marks.
If the steel surface remains clean and free from rust, the sample demonstrates effective rust prevention performance. This method is widely accepted for evaluating lubricants used in turbines, hydraulic systems, and industrial machinery where water contamination may occur.
Applications
The A1050 Automatic Liquid Phase Rust Tester is widely used in:
Lubricant Manufacturing Plants
For quality control testing of anti-rust additives and finished lubricating oils.
Petroleum Refineries
To evaluate turbine oils, hydraulic oils, and industrial oils before market release.
Independent Testing Laboratories
For third-party testing and certification services.
Power Plants
For turbine oil maintenance and condition monitoring programs.
Universities & Research Institutes
For petroleum chemistry, corrosion studies, and lubricant development.
Government Inspection Agencies
For market supervision and product quality enforcement.
Marine & Heavy Industry
For testing oils used in humid or water-exposed operating environments.
Buyer Benefits
Improve Product Quality
Ensure lubricants meet corrosion resistance standards before shipment or market launch.
Reduce Equipment Failure Risk
Identify poor-performing oils that may lead to rust damage in industrial systems.
Increase Laboratory Efficiency
Four testing positions allow multiple samples to run simultaneously.
Reliable and Repeatable Results
Stable temperature and stirring systems improve testing consistency.
Meet Tender & Export Requirements
ASTM-compliant testing supports international procurement and certification projects.
Lower Operating Costs
Durable stainless steel construction minimizes maintenance and extends service life.
OEM & Customization Support
LabVV offers global OEM and customization services:
- OEM logo printing
- Voltage customization (110V / 220V / 50Hz / 60Hz)
- Custom user manual
- Private label solutions
- Export packaging service
- Fast production lead time
- Spare parts support
- Technical training assistance
Why Choose LabVV
LabVV is a trusted supplier of petroleum laboratory instruments with more than 10 years of industry experience. We provide reliable testing equipment, competitive pricing, global export service, and responsive after-sales support.
Our products are widely exported to the Middle East, Asia, Africa, Europe, and South America.
